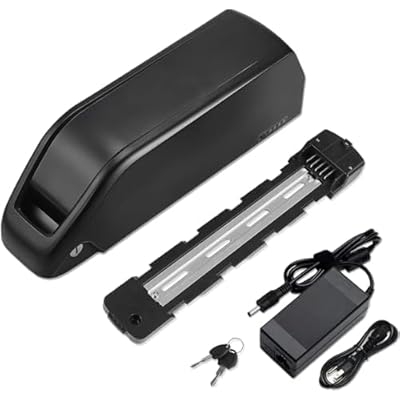

Hailong E-Bike Battery (HN05) 36V, 48V and 52V

Electric Bike Battery Specifications:

• • Battery type: Lithium-ion (LG & Samsung 21700 cells)
  • Voltage options:
    • 36V
    • 48V
    • 52V
  • Capacity range:
    • 20Ah
  • Energy (example):
    • 36V 20Ah ≈ 720Wh
    • 48V 20Ah ≈ 960Wh
    • 52V 20Ah ≈ 1040Wh
  • Dimensions:
    • 370*95*120mm

  ---

  Performance & compatibility

  • Motor support:
    • ~200W to 1500W systems
  • Typical BMS rating:
    • 40A continuous (varies by build)
  • Cell configuration:
    • Usually 21700 lithium-ion packs (varies by supplier)

  ---

   Design (HN05 case)

  • Case type: HN05 (Hailong-style downtube battery)
  • Dimensions:
    • 370*95*120mm
  • Mounting: Frame rail (slide-in with lock)
  • Features:
    • LED charge indicator
    • Key lock & removable pack
    • Discharge port at base
  • Water resistance: Typically splash-resistant (~IP54–IP65 range depending on build)

  ---

  Lifespan & build

  • Cycle life: ~800–1000 cycles (typical for this class)
  • Cells used: LG & Samsung 21700 5000mAh

  Package included:

• 1 x Battery
• 1x Charger (UK Plug)
• 1x mounting plate
• 2x keys
